Description

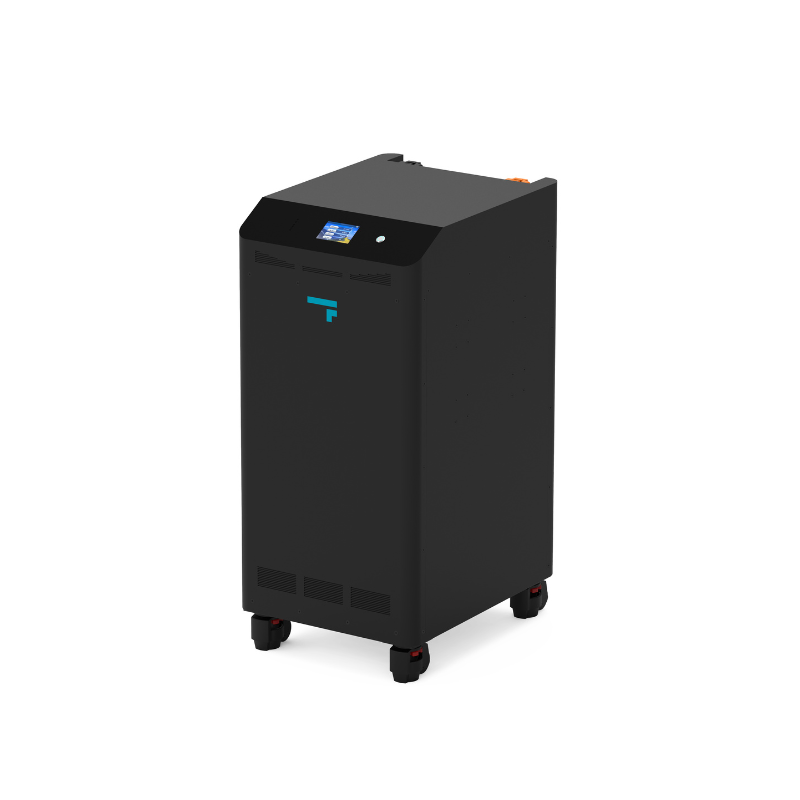

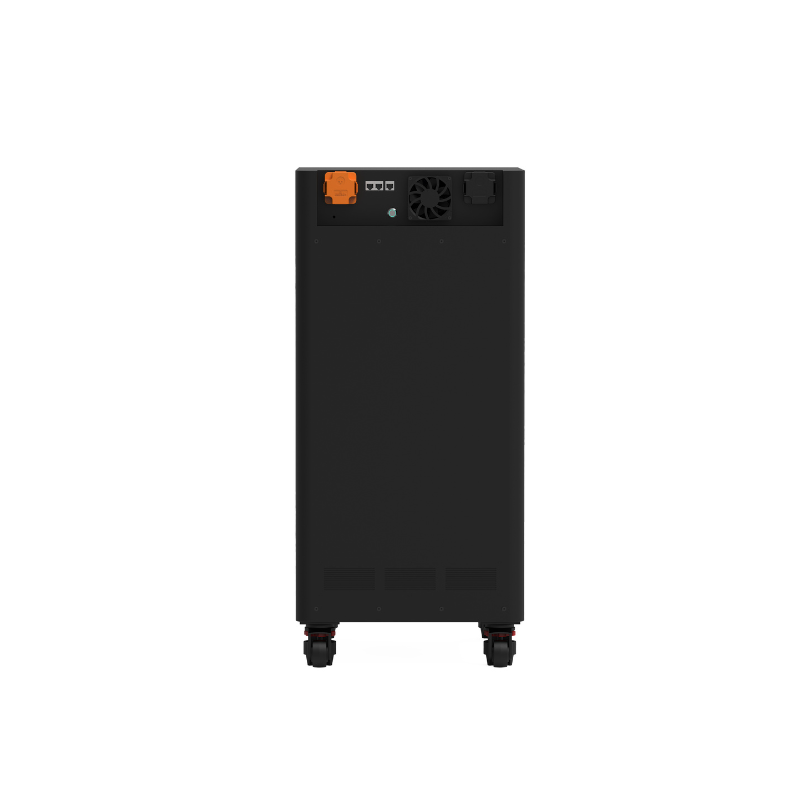

Fogstar Energy 32kWh 51.2V LiFePO4 Battery – Black
The Fogstar Energy 32kWh Battery is a high-capacity LiFePO4 energy storage solution designed for demanding residential, commercial, industrial and off-grid renewable energy systems.
Providing 32kWh of energy storage with a substantial 628Ah capacity, the battery combines a 300A Seplos Battery Management System, 2A JK Active Balancer, integrated heating and automatic fire suppression within a heavy-duty enclosure.
With support for up to 16 batteries connected together, the system can also be expanded for installations requiring significantly greater energy storage capacity.
Key Features
- 32kWh rated energy capacity
- 51.2V nominal voltage
- 628Ah battery capacity
- LiFePO4 battery technology
- 300A Seplos Battery Management System
- 2A JK Active Balancer
- Up to 300A maximum discharge current
- Approximately 8,000 cycles at 91% DOD
- Integrated battery heating
- Built-in automatic fire suppression
- 375A DC breaker
- Dedicated On/Off isolation switch
- Integrated LCD touchscreen
- Preloaded inverter communication protocols
- Expandable up to 16 battery units
- Heavy-duty enclosure with integrated wheels
Advanced Battery Management
At the heart of the Fogstar Energy 32kWh battery is a 300A Seplos Battery Management System (BMS) paired with an integrated 2A JK Active Balancer.
The system provides cell monitoring and management while the active balancer helps maintain consistency between individual cells, supporting reliable performance and long-term battery health.
Integrated Fire Suppression
An automatic heat-activated aerosol fire suppression system is integrated directly into the battery enclosure.
This provides an additional internal safety system designed to respond to thermal events without requiring separate external fire suppression equipment.
Integrated Battery Heating
The battery incorporates an intelligent heating system designed to maintain suitable cell temperatures during cold-weather operation.
Fogstar specifies charging operation down to -10°C, making the battery suitable for installations where lower ambient temperatures may be encountered.
Inverter Communication & Compatibility
Preloaded inverter protocols allow the battery to communicate with a range of commonly used renewable energy inverter systems.
Fogstar lists compatibility with popular manufacturers including Victron, LuxPower, Solis, Sunsynk and Voltacon.
The integrated LCD touchscreen provides access to system information, diagnostics and controls directly from the battery.
Please check compatibility with your particular inverter model before purchasing or installing the battery.
Expandable Energy Storage
The Fogstar Energy 32kWh Battery can be used as part of a substantially larger energy storage system.
Up to 16 compatible units can be connected, making the system suitable for applications ranging from larger residential installations through to commercial and industrial energy storage.
Technical Specifications
| Battery Chemistry | LiFePO4 |
| Rated Energy | 32kWh |
| Model | FE51.2V-32-LVFB |
| Nominal Voltage | 51.2V |
| Operating Voltage | 42V – 58.2V |
| Capacity | 628Ah |
| Cell Configuration | 16S2P |
| BMS | Seplos 300A |
| Active Balancer | JK 2A |
| Maximum Discharge Current | 300A |
| Cycle Life | 8,000 cycles @ 91% DOD |
| Charging Temperature | -10°C to 40°C |
| Discharge Temperature | -20°C to 40°C |
| Heating | Integrated |
| Fire Suppression | Integrated automatic aerosol system |
| DC Breaker | 375A |
| Display | LCD touchscreen |
| Maximum Expansion | Up to 16 units |
| Dimensions | 416mm (W) × 538mm (L) × 900mm (H), with wheels |
| Weight | 233kg |
| Colour | Black |
| Warranty | 6 years |

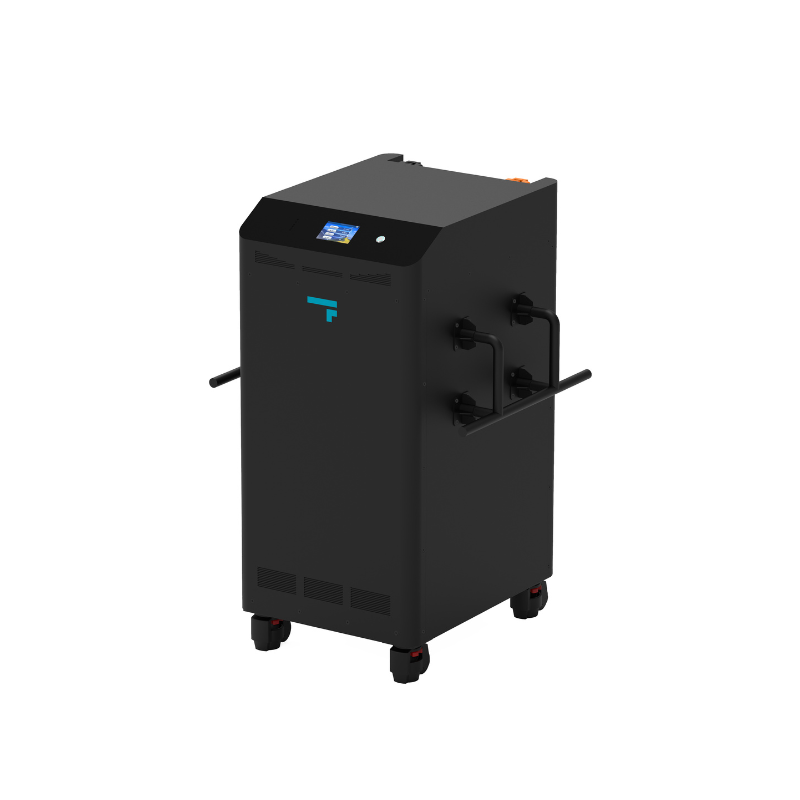

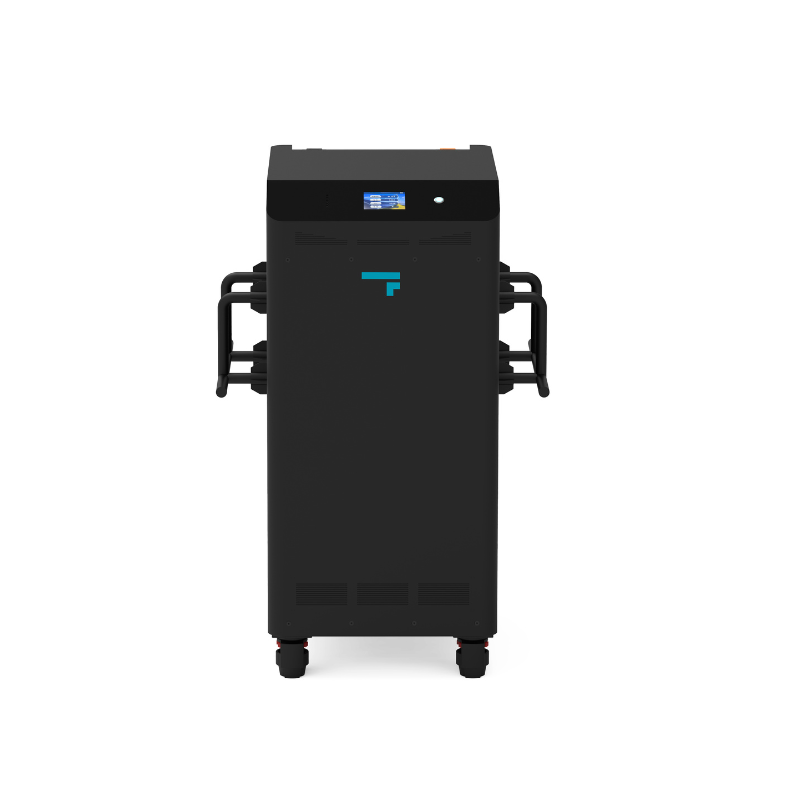

Heavy-Duty Mobile Enclosure
Despite its substantial capacity, the battery has been designed to make positioning and installation more manageable.
The heavy-duty enclosure incorporates wheels and an integrated lifting system. The complete battery weighs approximately 233kg, so appropriate handling and lifting procedures must still be used.
Fogstar Warranty & Support
The Fogstar Energy 32kWh Battery is supplied with a 6-year manufacturer’s warranty. Fogstar also states that customer service support is available for up to 10 years, subject to the manufacturer’s applicable terms.
Customers should read the manufacturer’s warranty documentation before installation and use.
Product Documents
📄 Download Fogstar Energy 32kWh Battery Warranty Booklet
📄 Download Fogstar Energy Technical Specification Booklet
Installation Information
Due to the electrical capacity, size and weight of this battery, installation should be carried out by a suitably qualified and knowledgeable person. Appropriate cabling, electrical protection, inverter configuration and installation procedures must be followed.
The battery weighs approximately 233kg. Suitable lifting and handling equipment should therefore be used when transporting, positioning or installing the unit.
Please refer to the Fogstar technical and warranty documentation above for the applicable installation, operating and safety requirements.
Need Help?
If you’re unsure whether the Fogstar Energy 32kWh Battery is suitable for your inverter or renewable energy system, please contact South West Renewables before ordering. Our team can help with product information and compatibility enquiries.
