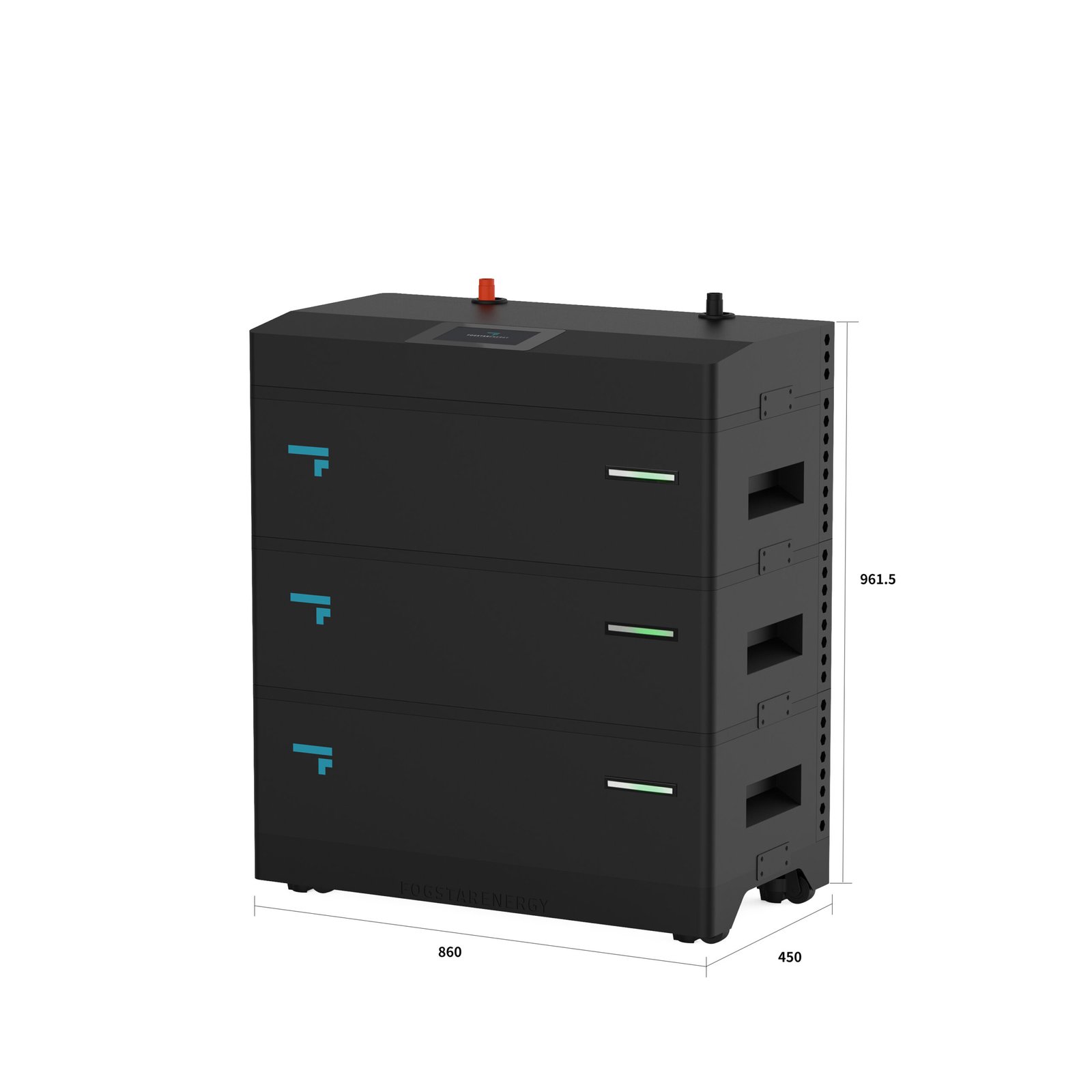

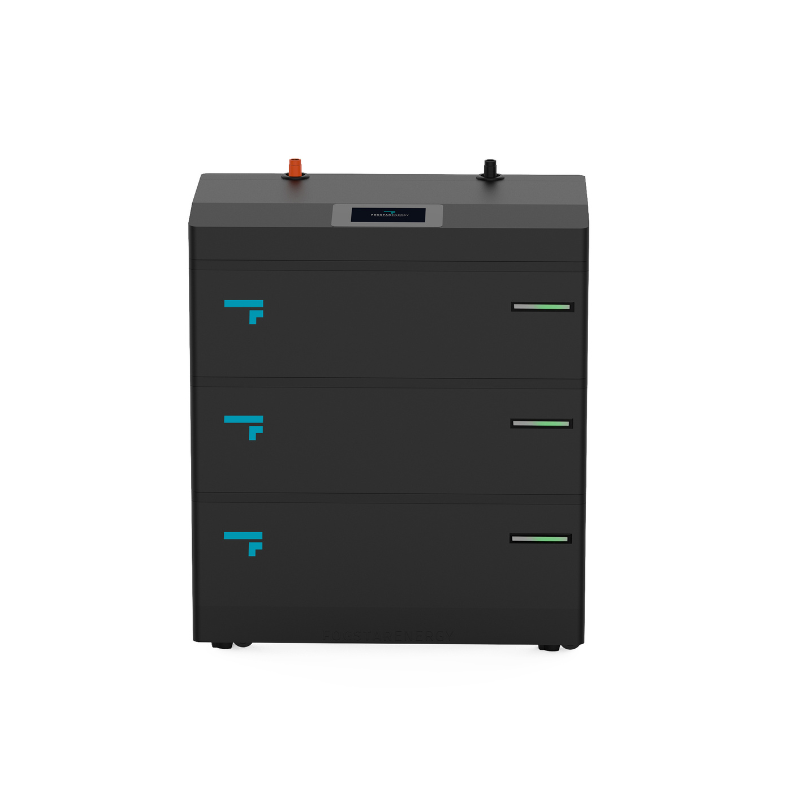

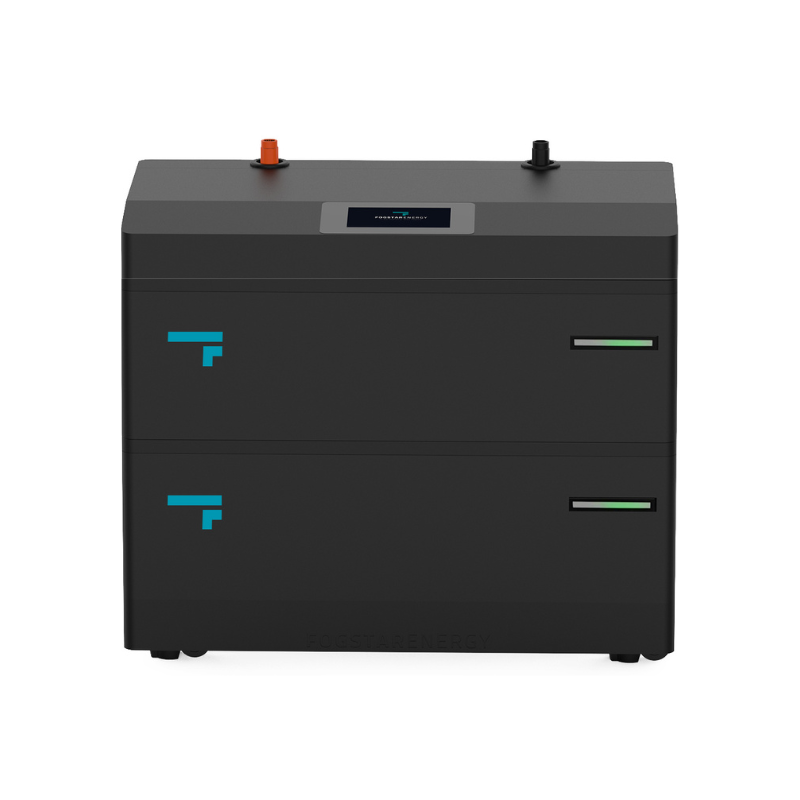

Fogstar Energy 16.1kWh IP65 48V Modular Battery Stack
The Fogstar Energy 16.1kWh Modular Battery Stack is a high-capacity LiFePO4 battery storage solution designed for residential, commercial and light industrial energy storage applications.
Built around a modular 48V battery platform, the system combines high storage capacity with integrated battery management, active cell balancing and robust IP65-rated construction. Its modular design also provides flexibility for larger energy storage installations.

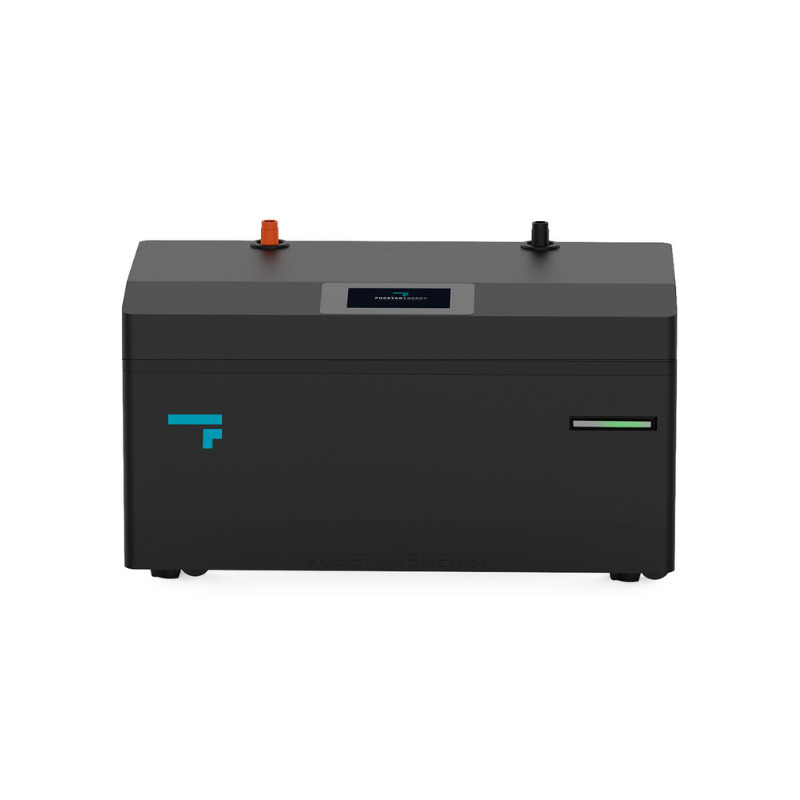

This version is supplied as a battery stack system with the associated stack control panel and base. Please check the full technical specification and compatibility requirements before ordering.
Key Features
- 16.1kWh LiFePO4 battery capacity
- 51.2V nominal voltage

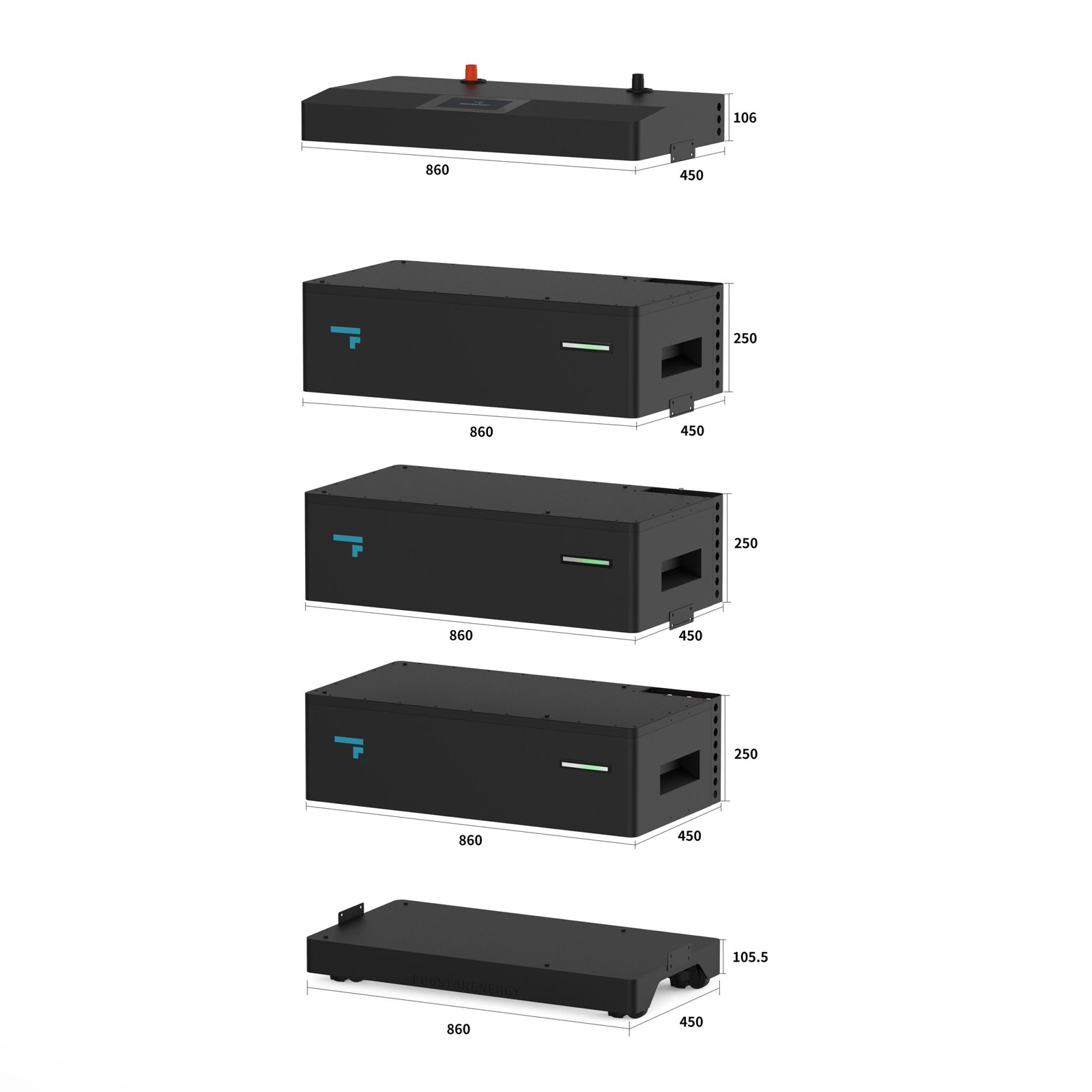

- Modular battery stack design
- Integrated Battery Management System (BMS)
- Active cell balancing
- CAN / RS485 communications
- IP65-rated construction
- Integrated heating for low-temperature charging
- Integrated fire suppression
- Designed for integration with compatible 48V inverter systems
Battery Specifications
- Rated Energy: 16.1kWh
- Nominal Voltage: 51.2V
- Operating Voltage: 43.2V – 57.6V
- Configuration: 16S1P
- Maximum Discharge Current: 150A
- Maximum Charge Current: 150A
- Capacity: 314Ah
- Communications: CAN / RS485
- Ingress Protection: IP65
Designed for Flexible Energy Storage
The modular design makes the Fogstar Energy battery suitable for a wide range of renewable energy and battery storage installations. The 48V architecture and CAN / RS485 communications allow integration with compatible inverter and energy management systems.
Integrated heating helps support operation in colder environments, while the IP65-rated enclosure provides protection against dust and moisture. Built-in battery management and cell balancing help maintain stable battery performance throughout the system.
What’s Included?
Please refer to the product photographs and listing information for the exact components supplied with this battery stack.
Downloads & Product Information
Full technical information and warranty documentation for this Fogstar Energy battery system can be downloaded below.
Download Technical Specification Booklet (PDF)
Download Fogstar Energy 16.1kWh IP65 Battery Warranty Booklet (PDF)
Before Ordering
Please check the technical specification, inverter compatibility and installation requirements before purchasing. Battery storage equipment should be installed and commissioned by a suitably qualified person.
