High Current Toroidal Ring Type Choke – Approx. 54 Turns, 2.5mm Copper

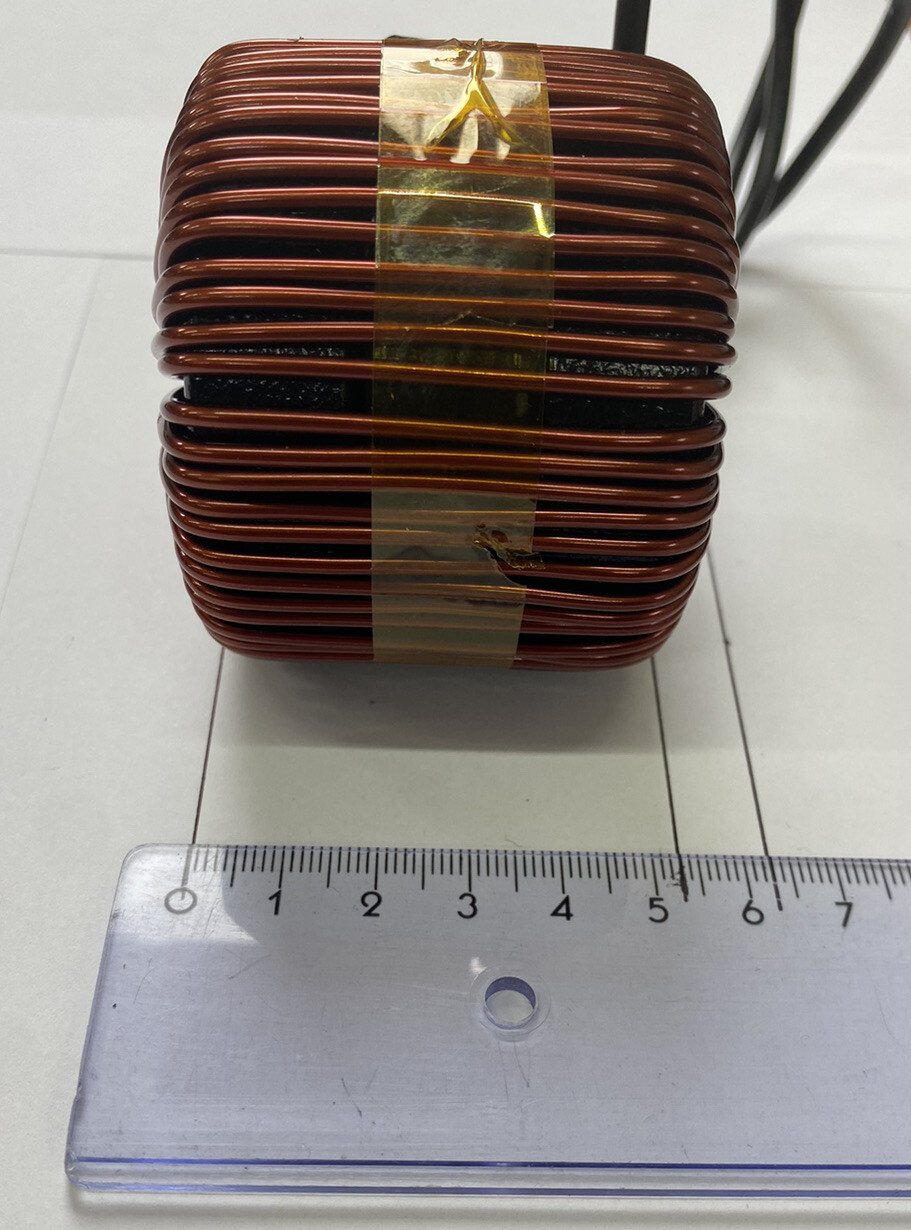

High current toroidal ring type choke constructed using approximately 54 turns of 2.5mm epoxy-coated solid copper wire. The winding is mounted onto three stacked toroidal cores, providing a compact and robust inductive component suitable for high current applications.
This type of choke is commonly used for filtering, noise suppression, and smoothing in power electronics and inverter systems.
Construction Details
Approx. 54 turns of 2.5mm solid copper wire
Epoxy-coated winding
Three toroidal cores (stacked)
Core dimensions (each):
Outer diameter: 58mm
Inner diameter: 25.6mm
Thickness: 16.1mm
Overall outer diameter: approx. 65mm
Height: approx. 55mm
Approximate weight: 700g

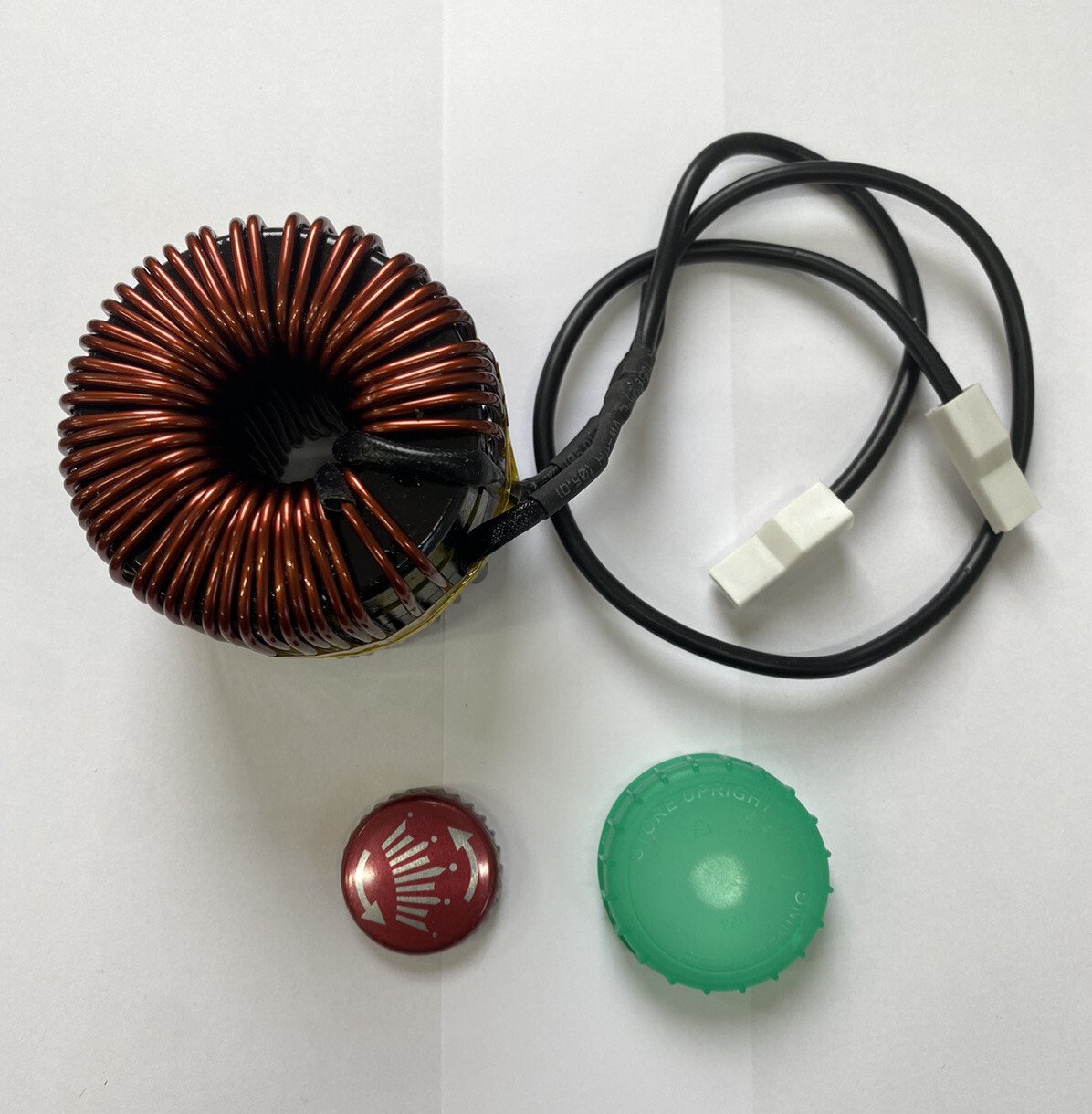

Lead lengths: 21cm and 41cm
Terminated with female spade connectors

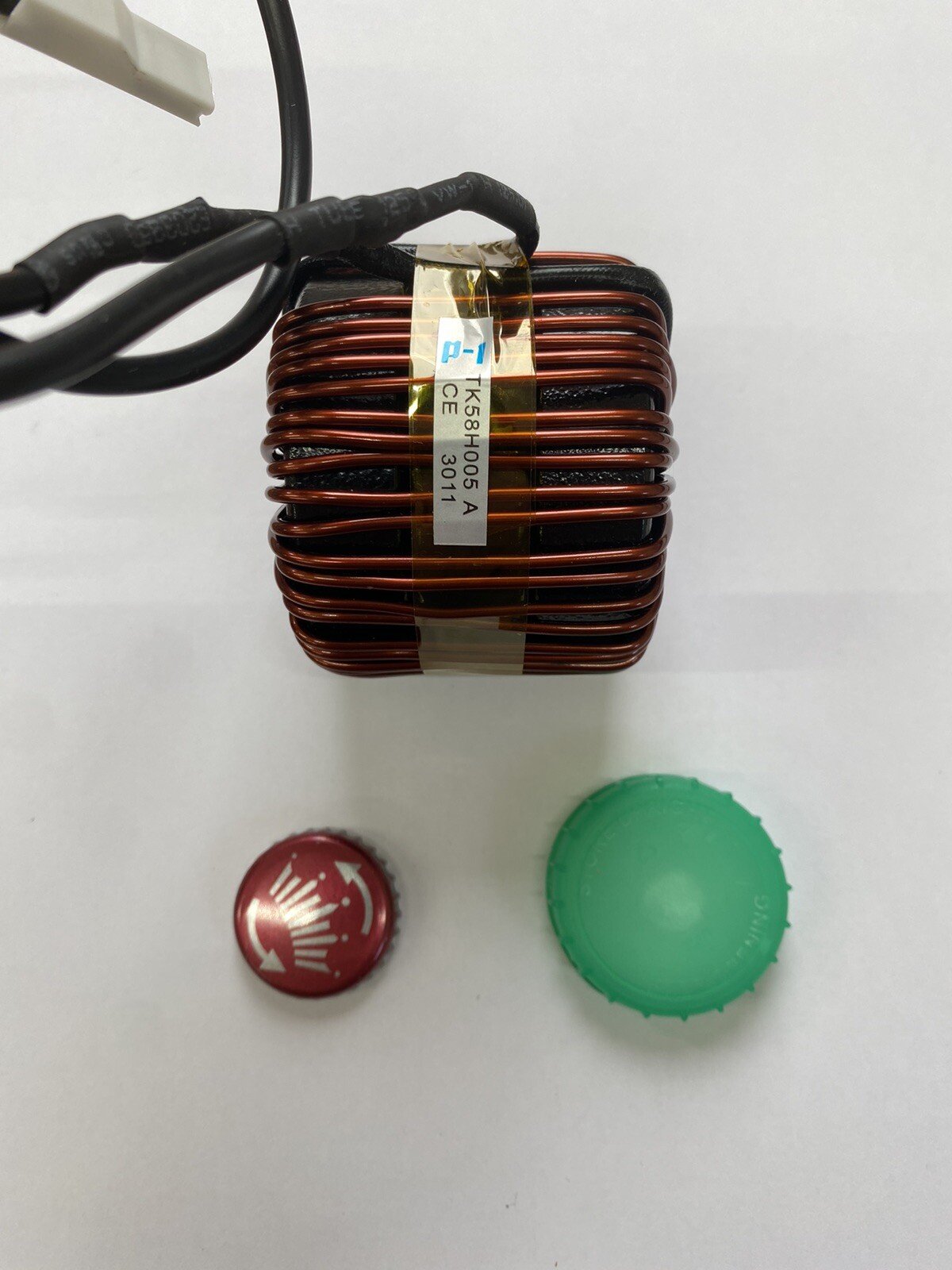

Marked: TK58H005

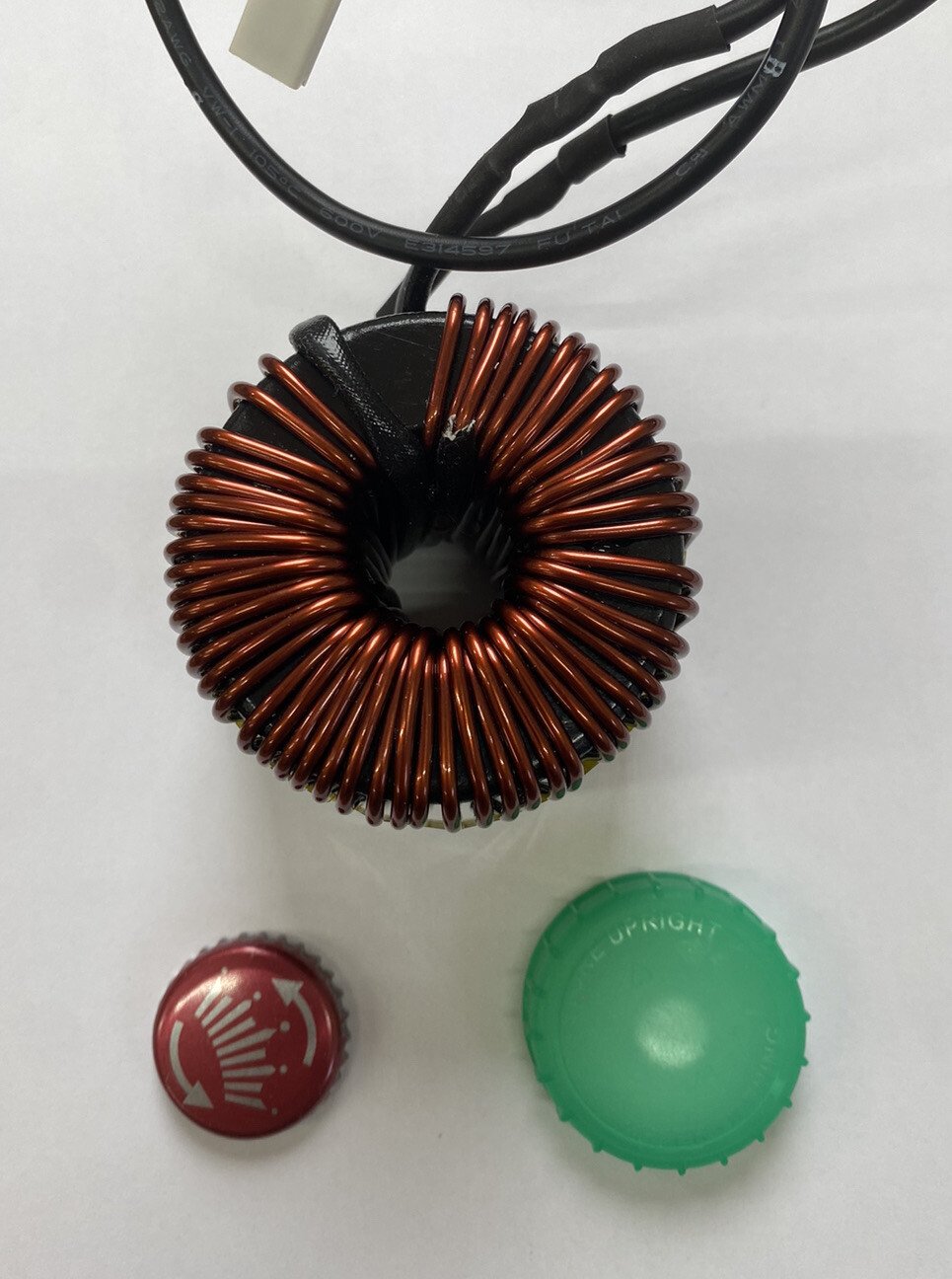

(Bottle tops shown in images are for scale reference only.)
Applications
High current filtering
Power supply smoothing
Inverter and converter circuits
EMI suppression
Industrial electrical projects
Condition
Fully inspected prior to dispatch
Supplied as shown
Warranty
3-month warranty included
