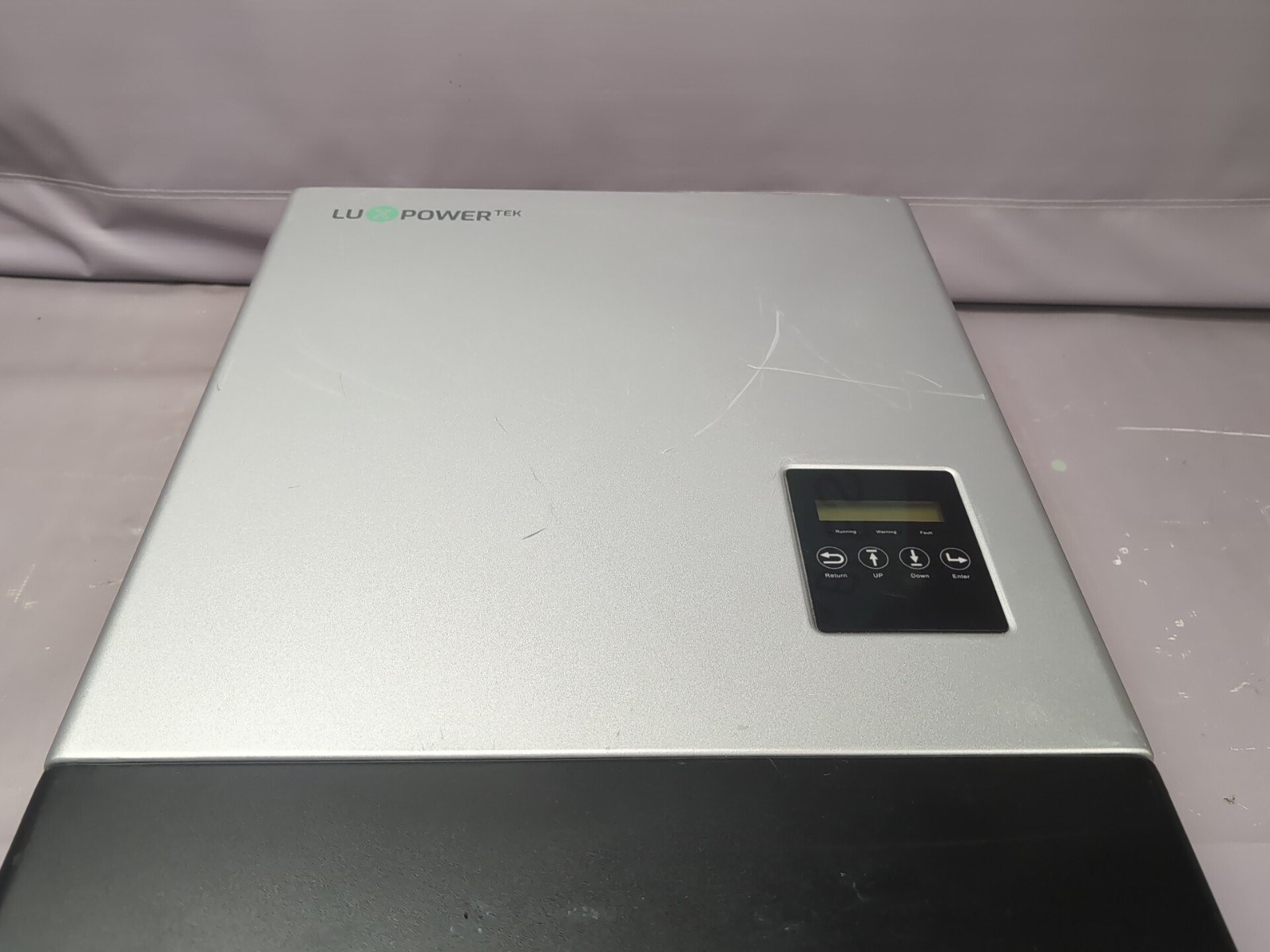

⚡ Lux Power 3.6kW Hybrid Inverter

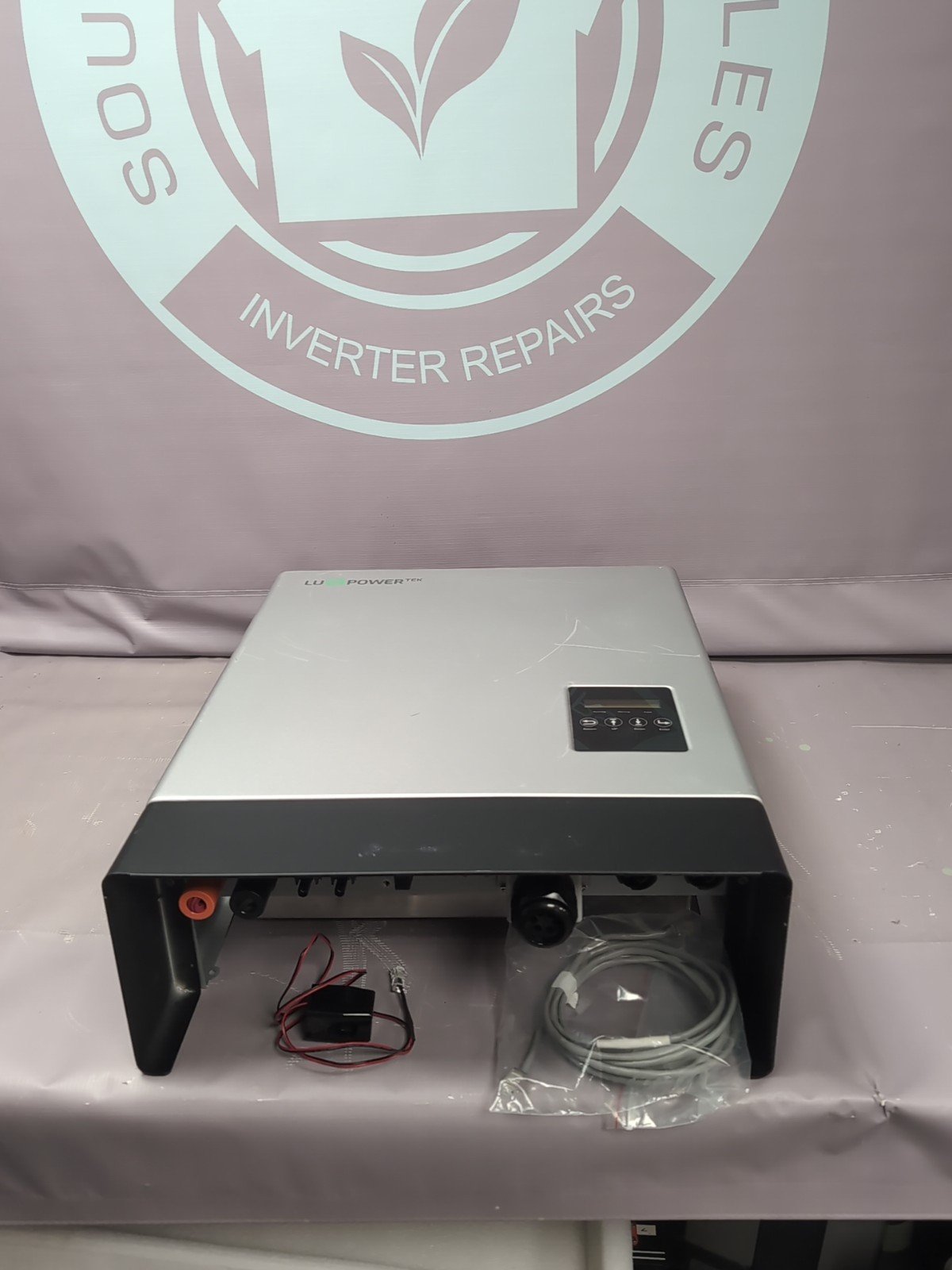

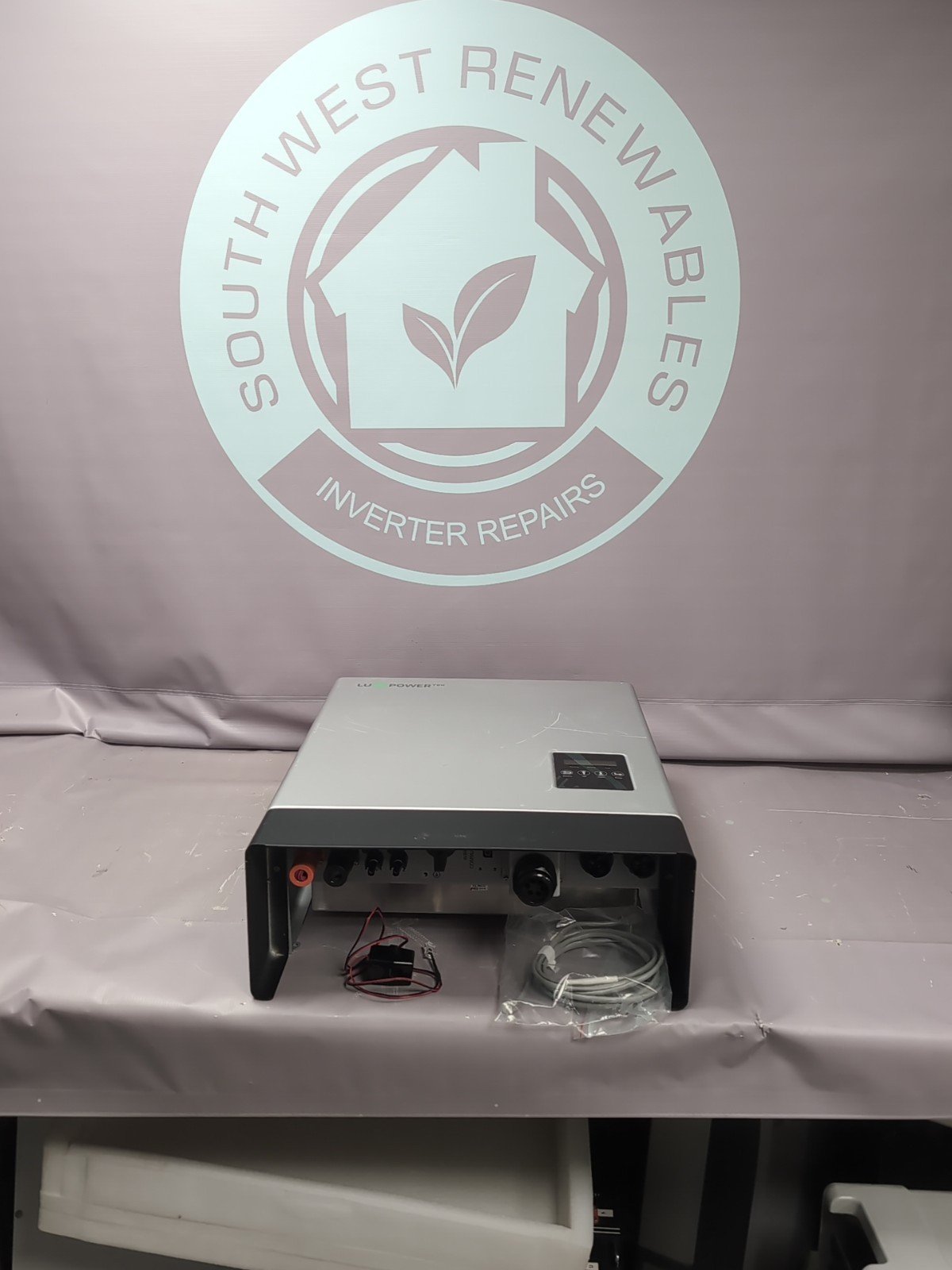

Tested with a Pylontech battery — complete with AC plug, wall bracket, and CT clamp
This Lux Power 3.6kW Hybrid Inverter is a powerful and flexible solution for solar PV and battery storage systems. Fully tested in our workshop, including operation with a Pylontech lithium battery, this unit is ideal for both DIY installers and professional system upgrades.
Included:
- AC plug
- Wall mounting bracket
- CT clamp

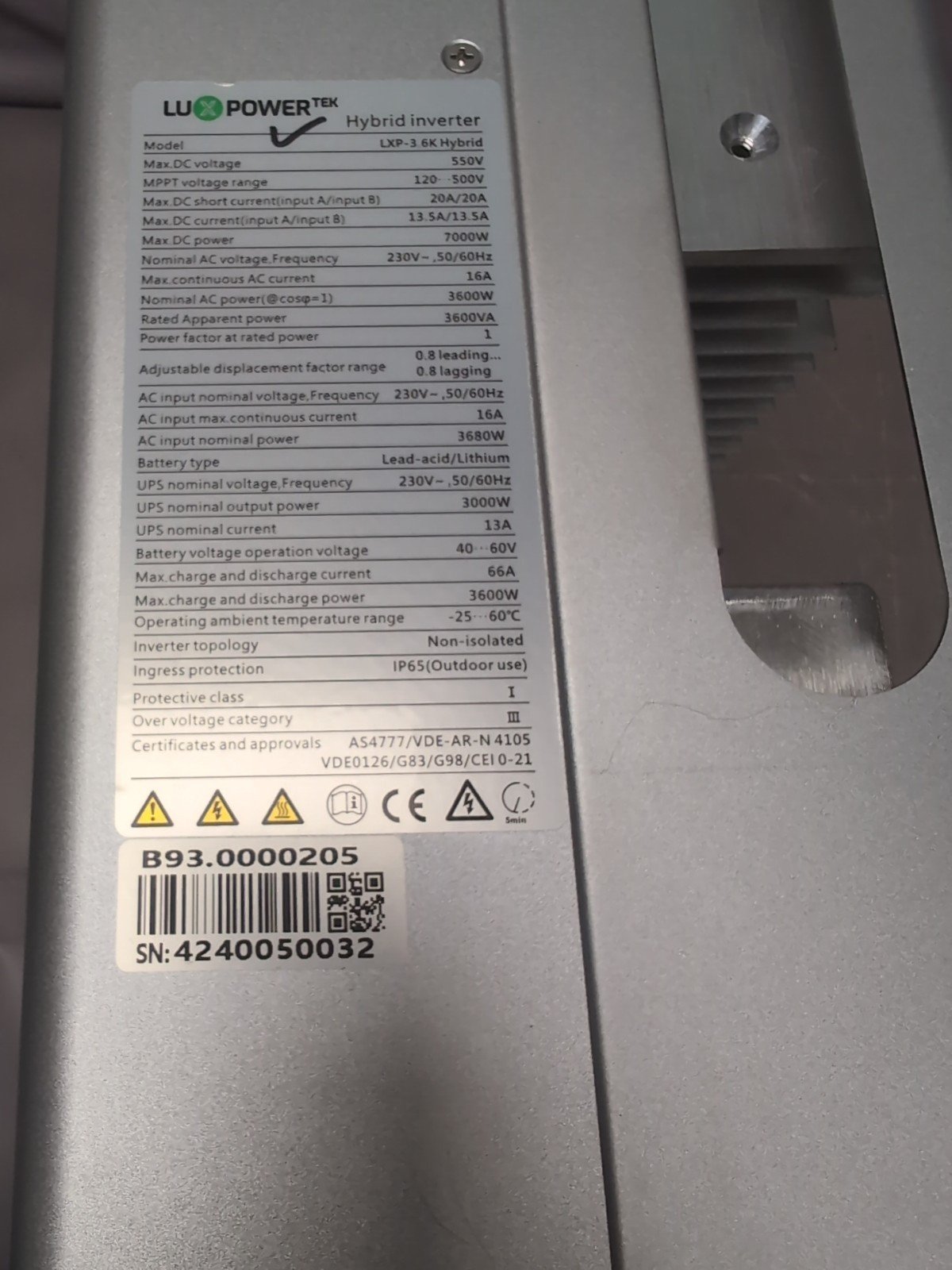

🔧 Solar Input Specifications
- Max. DC Input Power: 7000W
- Nominal DC Input Voltage: 360V DC
- DC Voltage Range: 100–550V DC
- MPPT Voltage Range: 120–500V DC
- Start‑up Voltage: 140V DC
- MPPT Trackers: 2
- Max. DC Input Current: 12.5A / 12.5A
- Max. Short‑Circuit Current: 13.7A / 13.7A
- Max. Input Power per MPPT: 4000W / 4000W
- Max. Feedback Current: 0A
🔋 Battery Input/Output
- Compatible Batteries: Lithium‑ion / Lead‑acid
- Nominal Battery Voltage: 48V DC
- Battery Voltage Range: 40–60V DC
- Max. Charge/Discharge Current: 80A / 80A
- Max. Charge/Discharge Power: 3600W / 3600W
- Charging Curve: 3‑stage
- Max. Charge Voltage: 59V
- Depth of Discharge: 80% (Li‑ion) / 50% (Lead‑acid)
- Supported Battery Capacity: 2–20kWh
⚡ AC Input/Output
- Nominal AC Output Power: 3600W
- Max. AC Output Power: 3600VA
- Max. AC Output Current: 16A
- Nominal AC Voltage: 230V
- AC Voltage Range: 180–270V
- Nominal Frequency: 50/60Hz
- Frequency Range: 45–55Hz / 55–65Hz
- Power Factor: Adjustable 0.8 leading to 0.8 lagging
- THDI: <3%
- Inrush Current: 10A / 10µs
- Max. Output Fault Current: 50A / 20µs
- Over‑current Protection: 20A
🌞 Key Features
- Supports up to 7kW PV input
- Works with 1 to 8 lithium batteries
- Add multiple controllers for higher charge/discharge rates
- Advanced weather‑compensation programming
- 0.01s seamless switchover
- Max charge/discharge rate: 66A
- Lightweight: 25kg
- Quiet operation: <25dB
- IP65 weather‑resistant
- Not tested with wifi
