Description

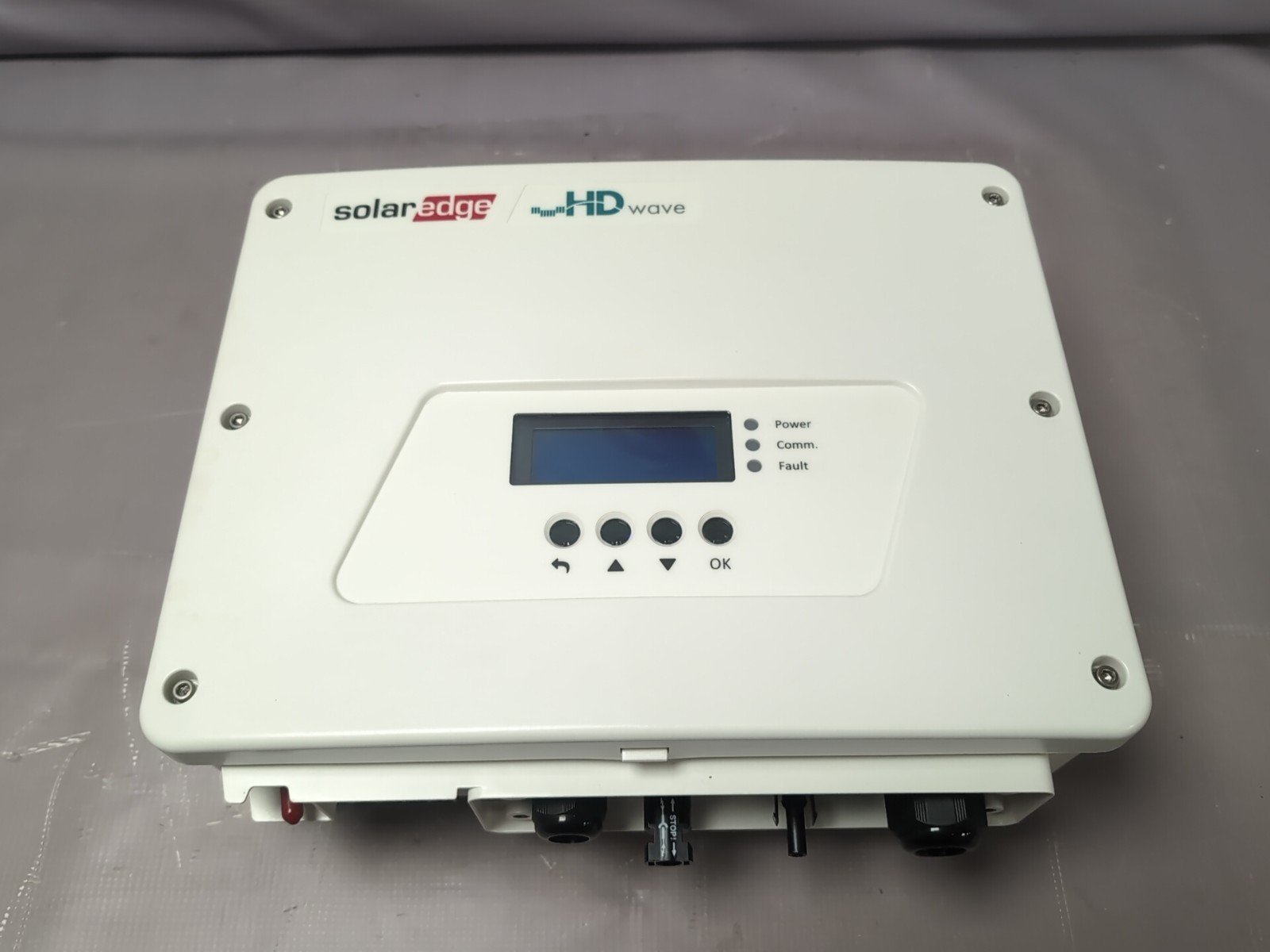

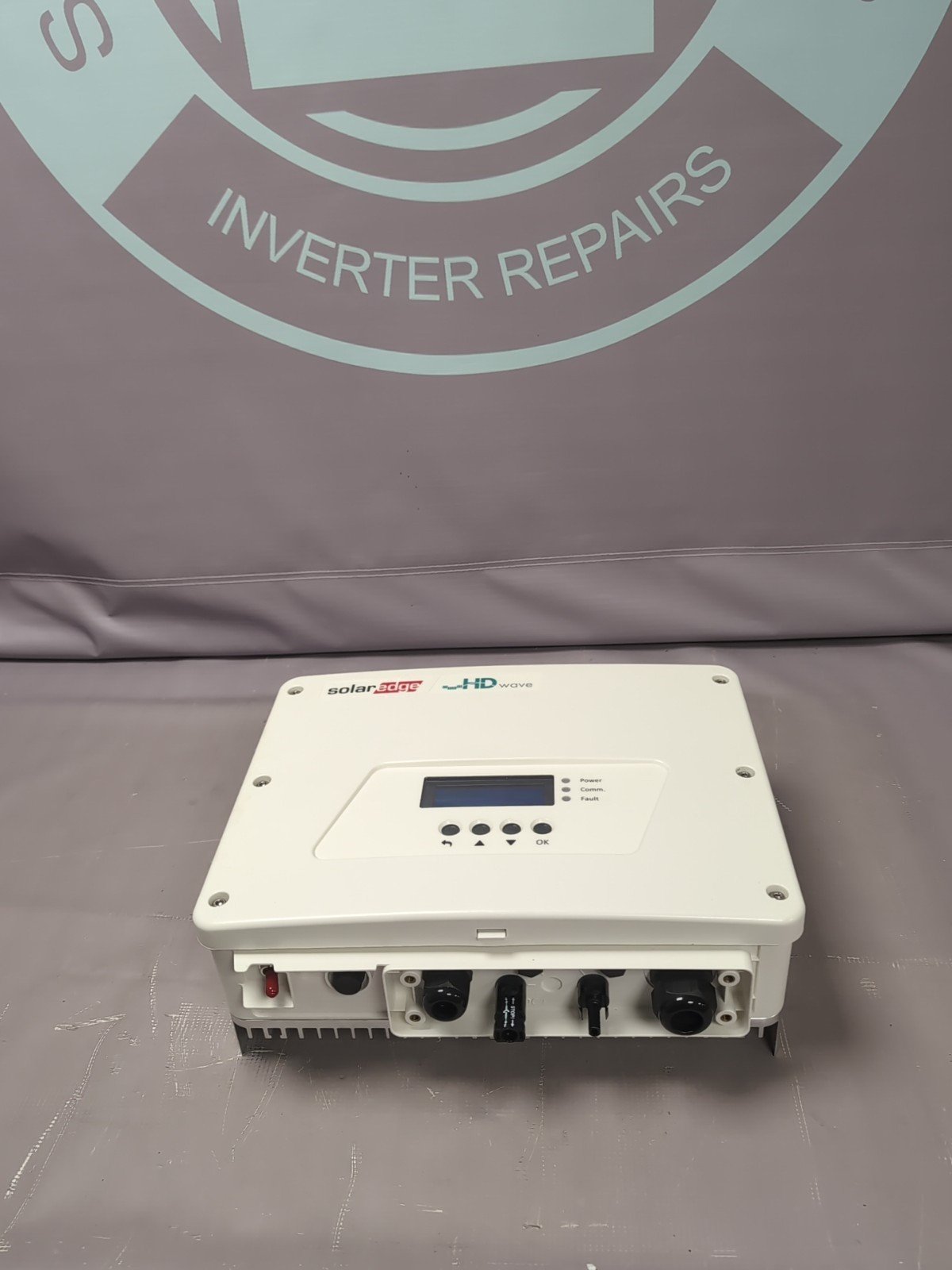

SolarEdge SE3680H HD-Wave Single Phase Inverter – 3.68kW
The SolarEdge SE3680H is a high-efficiency single phase inverter featuring advanced HD-Wave technology, designed to deliver reliable and optimised energy conversion for residential solar PV systems up to 3.68kW.
Engineered for use with SolarEdge power optimisers, this inverter maximises system performance by enabling module-level optimisation and monitoring.
HD-Wave Technology
SolarEdge’s HD-Wave inverter technology uses advanced digital processing to deliver:
Higher efficiency (up to 99% weighted efficiency)
Reduced heat generation
Compact and lightweight design
Improved reliability over time
This makes the SE3680H ideal for UK domestic installations operating within the 3.68kW G98 export limit.
Optimised Performance
When paired with SolarEdge power optimisers, the inverter allows each panel to operate independently. This significantly reduces losses caused by:
Partial shading
Panel mismatch
Different roof orientations
Soiling and uneven degradation
The result is improved energy yield and enhanced system visibility through SolarEdge monitoring platforms.
Ideal For
Residential solar PV systems
G98 compliant 3.68kW installations
Systems requiring module-level monitoring
New installations or inverter replacement

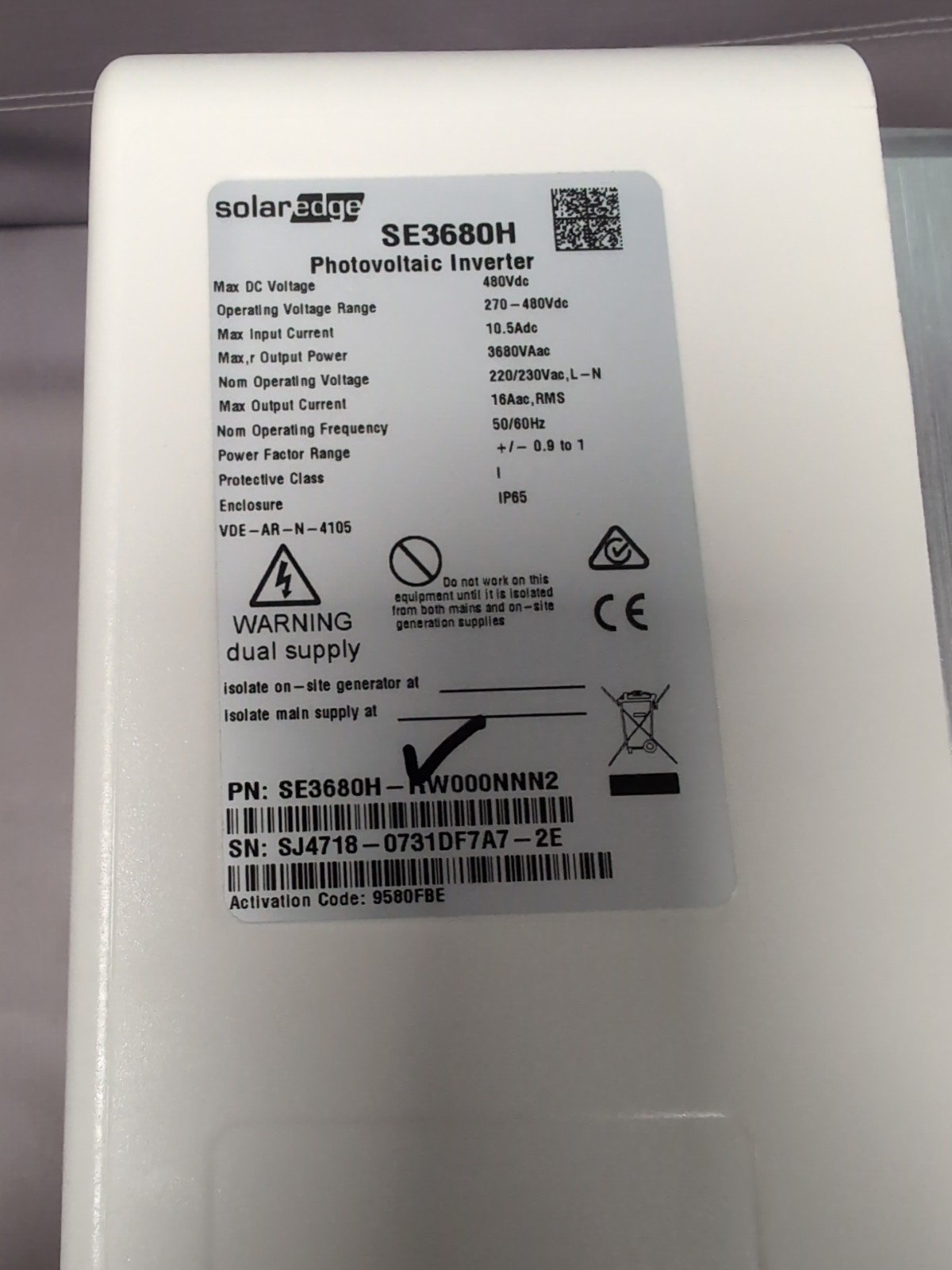

Key Specifications
Rated AC Output: 3.68kW
Phase: Single Phase
Technology: HD-Wave
Compatible with SolarEdge Power Optimisers
Integrated Monitoring Capability
Why Buy From Us?
VAT invoice supplied
Fully tested and workshop inspected where applicable
Technical advice available by phone or email
Environmentally focused renewable equipment specialists
