Description

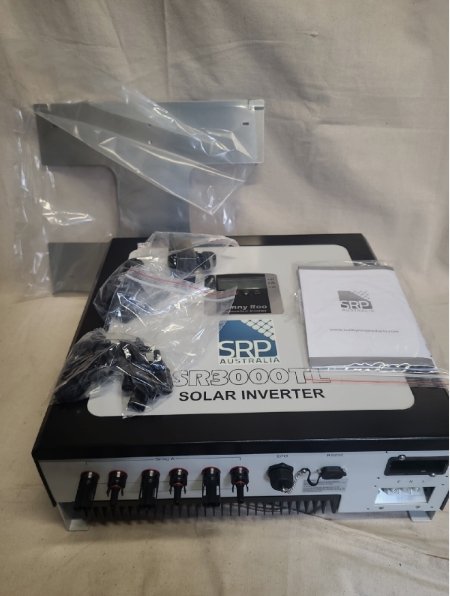

SRP Sunny Roo 3000TL – 3 kW Grid‑Tied Solar Inverter

A reliable 3 kW grid‑tied solar inverter suitable for use in the UK, Europe, and Australia where the electrical grid is 230 V / 50 Hz. Designed for up to 3 kW of DC solar input, this Sunny Roo 3000TL is ideal as a replacement inverter for existing installations.

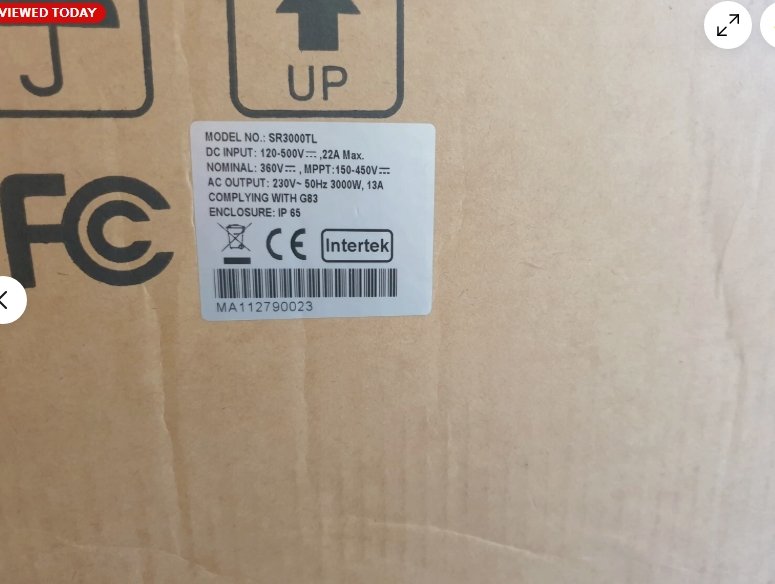

⚡ Electrical Characteristics

DC Input

• Nominal DC Voltage: 360 V
• Maximum DC Voltage: 500 V
• Operating DC Range: 120–500 V
• MPPT Operating Range: 150–450 V
• Number of DC Input Circuits: 1

AC Output

• Nominal Output Power: 3 kW
• AC Output Voltage: 230 V
• Phase / Wires: 1‑phase / L, N, E
• Nominal AC Frequency: 47–50.5 Hz
• Nominal AC Output Current: 13 A
• Efficiency: 96%

🌦 Environmental Ratings

• Protection Class: IP65 (Outdoor rated)
• Operating Temperature: –20°C to +50°C
• Humidity: 0–90% (non‑condensing)
• Altitude: 0–2000 m

📏 Mechanical Characteristics

• Dimensions (H × W × D): 455 × 430 × 170 mm
• Weight: 23 kg
• Cooling: Natural convection (fan‑less)

📜 Standards & Certifications

• Australia / NZ: AS/NZS 4777, AS/NZS 3100
• Europe: VDE, CE, GS
• UK: G83, CE
• Italy: ENEL DK5940 ED 2.2, CE

⚠️ Important Note for UK Buyers

This inverter is certified under the older G83 standard, not the current G98.

• Cannot be registered with the DNO for a new installation
• Cannot be used to claim new FIT payments
• Perfectly acceptable as a replacement inverter for an existing G83‑approved system
• Will not affect existing FIT payments when used as a like‑for‑like replacement

Ideal for homeowners needing to replace a failed G83 inverter without altering their existing system.
