Description

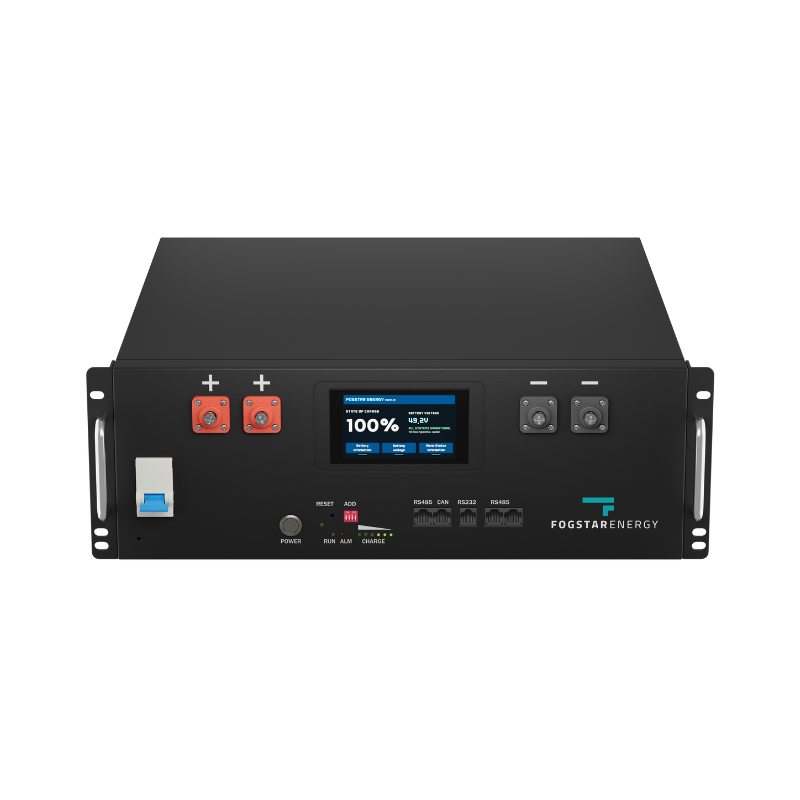

Fogstar Energy 5.12kWh 51.2V LiFePO4 Server Rack Battery
The Fogstar Energy 5.12kWh Server Rack Battery is a high-performance LiFePO4 energy storage solution designed for residential, commercial, solar and off-grid battery systems.
Providing 5.12kWh of usable energy storage, the battery uses 16 premium Grade A EVE LiFePO4 cells and combines long cycle life with integrated heating, an LCD touchscreen, inverter communication and built-in electrical protection.
Its rack-mounted modular design also makes it easy to expand your energy storage system, with support for up to 32 batteries connected in parallel, or up to 31 batteries when used with compatible Victron systems.
Key Features
- 5.12kWh usable battery capacity
- 51.2V LiFePO4 battery system
- 16 premium Grade A EVE cells
- Approximately 4,000 cycles at 80% DOD
- Integrated automatic battery heating
- Charging supported in temperatures as low as -20°C
- Integrated 125A DC breaker
- LCD touchscreen
- Preloaded inverter protocols
- Compatible with a wide range of popular inverter systems
- Connect up to 32 batteries in parallel
- Up to 31 batteries with compatible Victron systems
- 10-year manufacturer’s warranty
Grade A LiFePO4 Cells
The Fogstar Energy Server Rack Battery is constructed using 16 premium Grade A EVE LiFePO4 cells, providing a combination of safety, efficiency and long-term performance.
Fogstar specifies approximately 4,000 cycles at 80% Depth of Discharge (DOD), making the battery suitable for regular charging and discharging within renewable energy storage systems.
Integrated Battery Heating
The battery has been designed with UK operating conditions in mind and incorporates an automatic internal heating system.
The heating system activates when temperatures fall below 5°C, allowing the battery to continue charging in temperatures as low as -20°C.
Battery Protection
An integrated 125A DC breaker provides additional electrical protection and can interrupt the battery circuit in the event of a fault.
The battery’s integrated management and protection systems help maintain safe and reliable operation during normal charging and discharging.
Inverter Communication & Compatibility
The Fogstar Energy Rack Battery includes preloaded inverter protocols designed to simplify integration with a wide range of popular inverter systems.
Fogstar lists out-of-the-box protocol support for manufacturers including Victron, Pylontech, Growatt, Sofar, Solis and GoodWe.
The integrated LCD touchscreen allows the inverter protocol to be selected directly from the battery without requiring separate BMS software downloads.
Please check compatibility with your particular inverter model before purchasing or installing the battery.

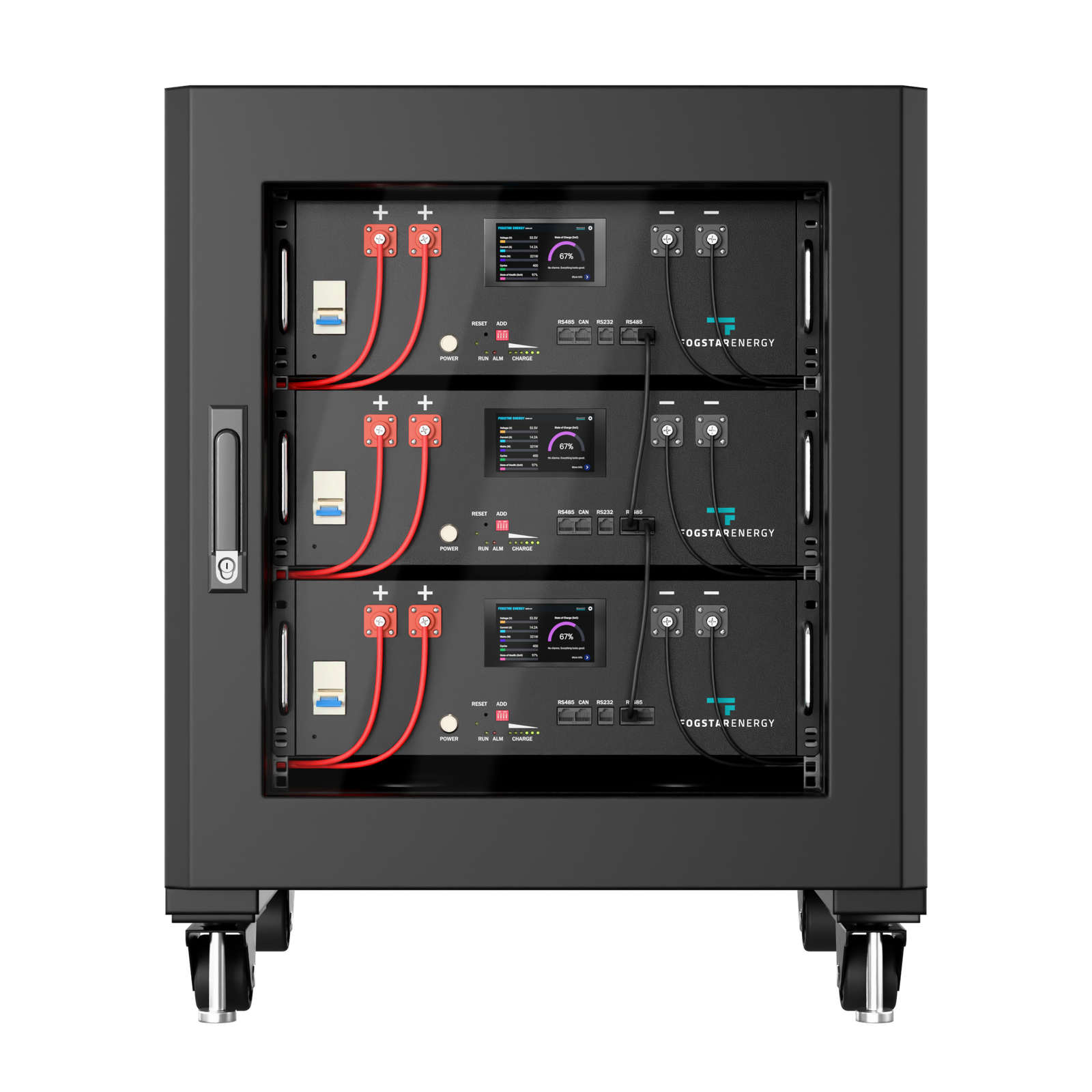

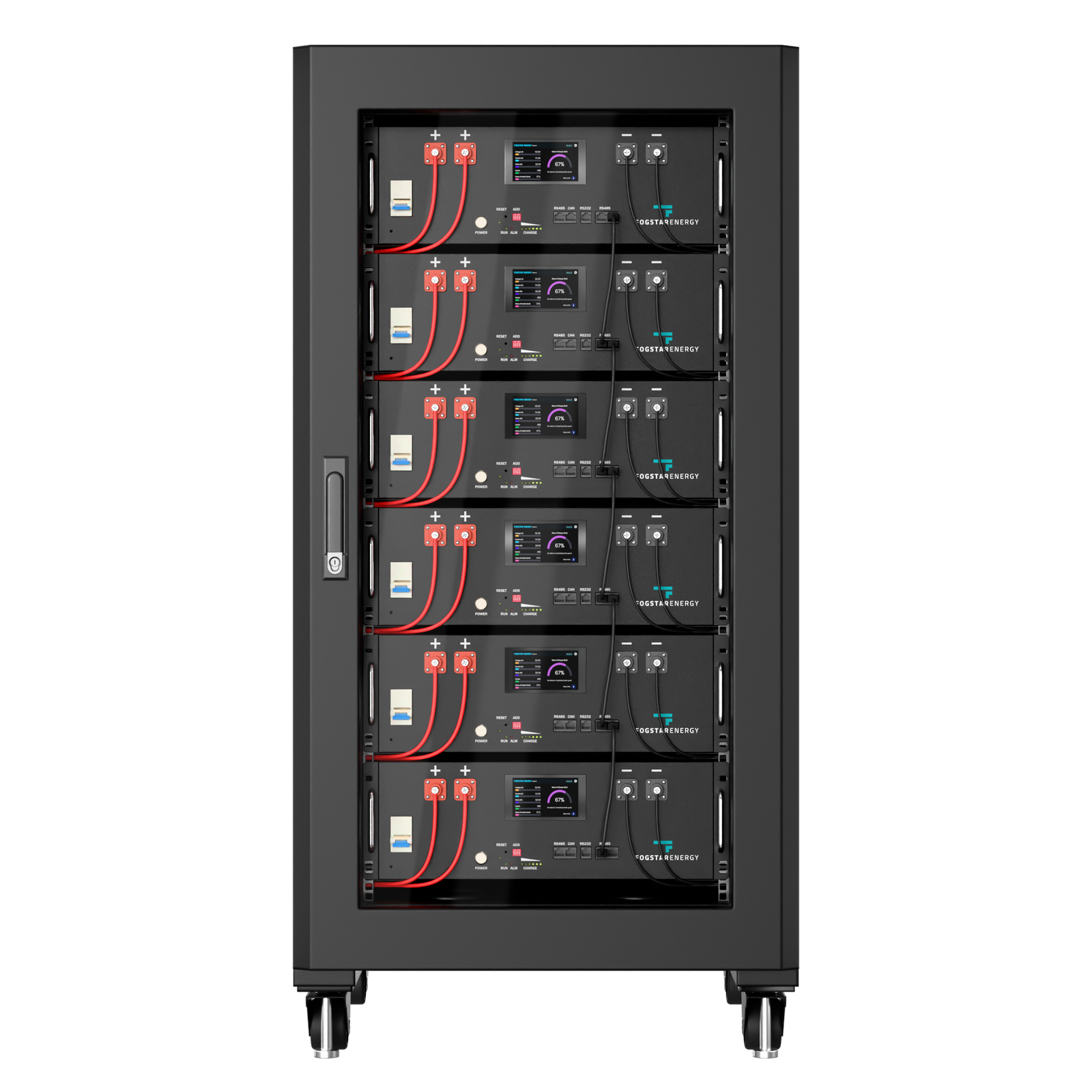

Expandable Rack Battery Storage
The modular rack-mounted format makes this battery particularly suitable for expandable energy storage installations.
Up to 32 Fogstar Energy Rack Batteries can be connected in parallel, allowing system capacity to increase as energy storage requirements grow. Fogstar specifies a maximum of 31 rack batteries when used with Victron systems.
Technical Specifications
| Battery Chemistry | LiFePO4 |
| Usable Energy | 5.12kWh |
| Rated Voltage | 51.2V |
| Capacity | 100Ah |
| Cells | 16 Grade A EVE LiFePO4 cells |
| BMS | PACE 100A |
| Maximum Discharge | 100A |
| Cycle Life | 4,000 cycles @ 80% DOD |
| Communication | CAN / RS485 / RS232 |
| Heating | Integrated automatic heating |
| DC Breaker | 125A |
| Display | LCD touchscreen |
| Parallel Connection | Up to 32 batteries |
| Victron Parallel Connection | Up to 31 batteries |
| Weight | 45.2kg |
| Design Life | 15 years |
| Warranty | 10 years |
Fogstar Warranty
The Fogstar Energy 5.12kWh Server Rack Battery is supplied with a 10-year manufacturer’s warranty, subject to Fogstar’s applicable warranty terms and conditions.
Customers should read the manufacturer’s warranty documentation before installation and use.
Product Documents
📄 Download Fogstar 5.12kWh Rack Battery Warranty Document
📄 Download Fogstar Energy Technical Specification Booklet
Installation Information
Installation should be carried out by a suitably qualified and knowledgeable person using appropriate cabling, protection, system configuration and inverter settings.
The battery weighs approximately 45.2kg, so suitable lifting and handling procedures should be used when installing or removing the battery from a rack or cabinet.
Please refer to the Fogstar documentation above for the applicable installation, operating and warranty requirements.
Need Help?
If you’re unsure whether the Fogstar Energy 5.12kWh Server Rack Battery is suitable for your inverter or renewable energy system, please contact South West Renewables before ordering. Our team can help with product information and compatibility enquiries.
