Description
🔌 High Current Toroidal Ring Type Choke – TK58H004
📐 Specifications
- Winding: Approx. 84 turns of 1.5mm epoxy-coated solid copper wire
- Core: Two large toroidal rings
- Outer diameter: 58 mm each
- Inner diameter: 25.6 mm
- Thickness: 16.1 mm
- Cables:
- Lengths: 21 cm & 41 cm
- Termination: Female spade connectors
- Unit Dimensions:
- Outer diameter: ~64 mm
- Height: ~34 mm
- Weight: Approx. 450 grams

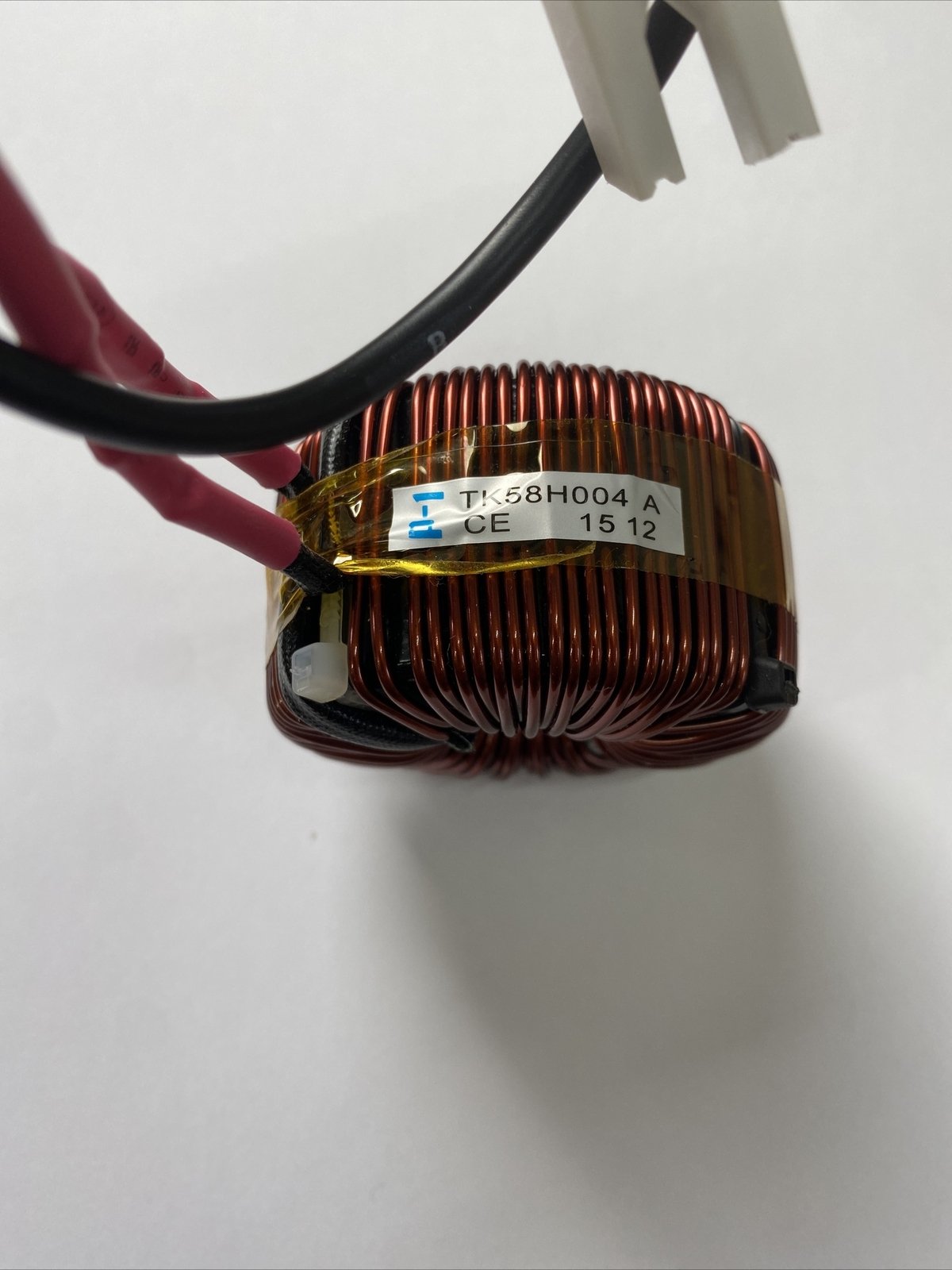

- Label Marking: TK58H004

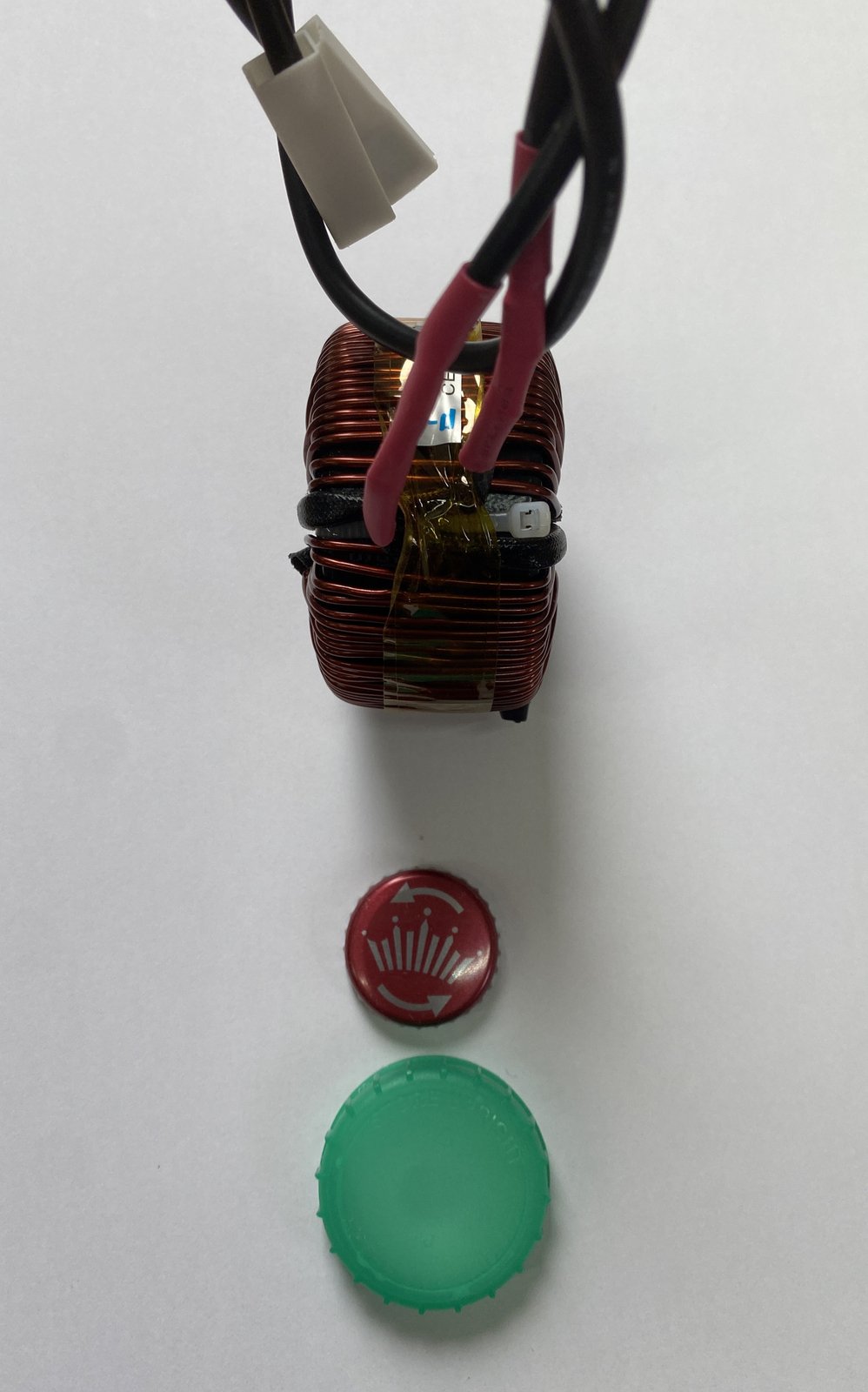

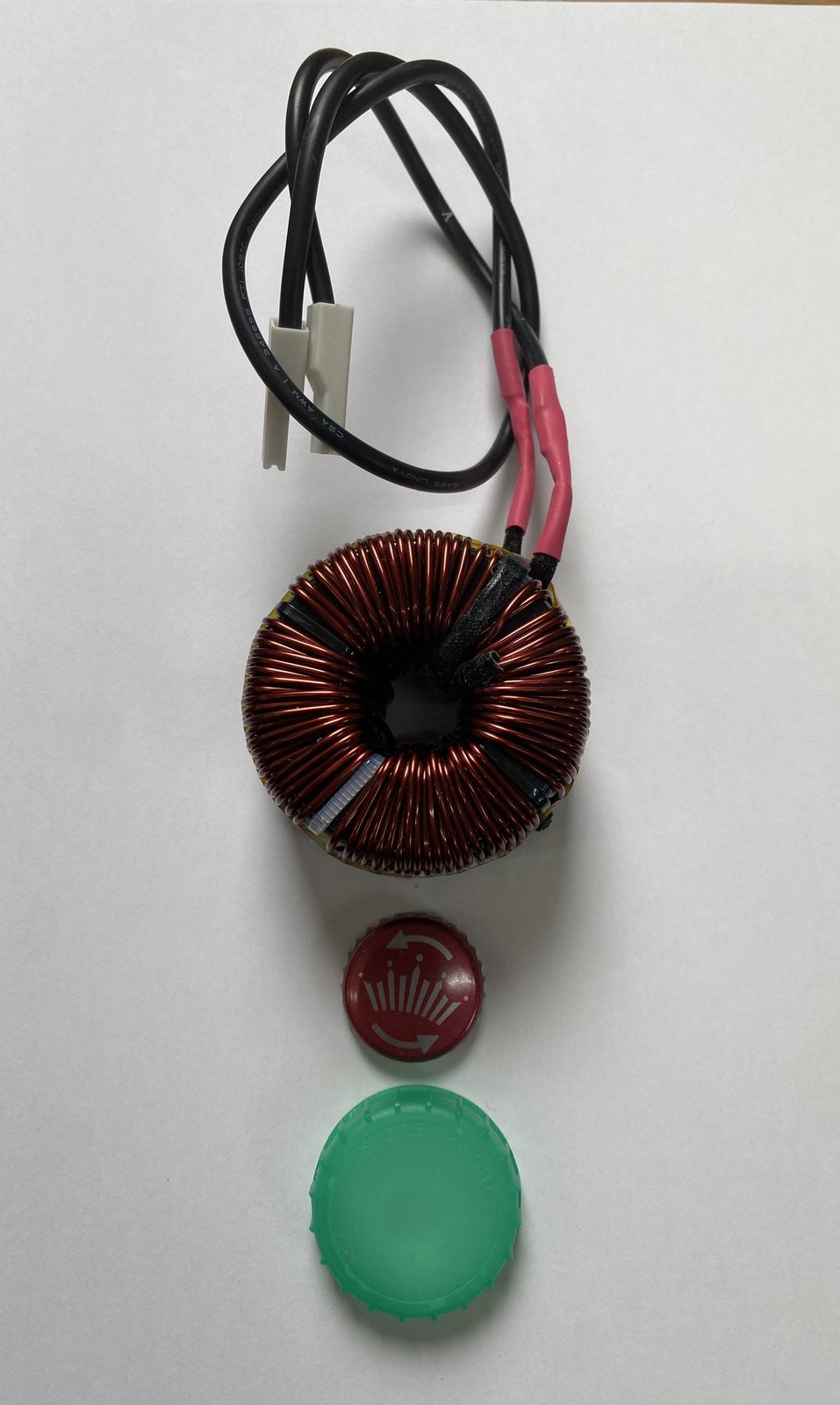

(Bottle tops shown in images are for scale illustration only)
⚡ Key Features
- Designed for high current applications requiring stable inductance
- Durable epoxy-coated copper winding for long-term reliability
- Compact size yet robust build, suitable for industrial and electronic projects
- Easy integration with spade connector terminations
🔧 Applications
Power supply filtering
Renewable energy systems (solar/wind setups)
Industrial machinery circuits
Audio and RF equipment requiring noise suppression
